100HP 4WD Tractor with 12F+12R Gearbox – High Clearance Agricultural Tractor
|
100HP 4WD Tractor with 12F+12R Gearbox – High Clearance Agricultural Tractor
| Place of Origin | CHINA |
| Model Number | BTB1004 |
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Price
10600USD
Payment Terms
T/T,Western Union
Product Description
The BTB1004 is a versatile 100 horsepower wheel tractor designed for both paddy and dry field operations. With its 4WD drive system, 380mm minimum ground clearance, and TB reinforced chassis, it delivers superior traction and durability. Whether you need heavy tillage or transport, the BTB1004 offers the perfect balance of power and efficiency.
Core advantages
| Advantages | Detailed description |
|---|---|
| Powerful & Efficient | Powered by a 100HP engine, matched with a 12F+12R gearbox, allowing precise speed selection for various implements from rotary tillers to disc plows. |
| Superior Traction | 4WD with front 8.3-20 and rear 14.9-28 tyres ensures excellent grip in wet paddy fields. The adjustable rear track (1300-1500mm) provides stability for different row spacing. |
| Heavy-Duty Hydraulics | Equipped with a strong rise and fall system and 1 set of hydraulic output, it handles heavy mounted implements effortlessly. The dual-speed PTO (540/760 r/min) ensures compatibility with global implement standards. |
| Rugged Build | Built on a durable TB chassis with a 2020mm wheelbase for stability. The 3450kg net weight reduces vibration and improves traction. Comes standard with 8 front and 2 rear counterweights. |
| Operator Safety & Comfort | Includes a safety rack (ROPS) and canopy as standard. The side-mounted fuel tank allows for easy refueling and better weight distribution. |
Technical Specifications
1.Model: BTB1004
2.Horse power:100HP
3.Type: wheel tractor
4.Driving method: 4WD
5.Gearbox: 12F+12R
6.Wheelbase:2020mm
7.Front track:1300mm
8.Rear track:1300～1500mm
9.Minimum ground clearance:380mm

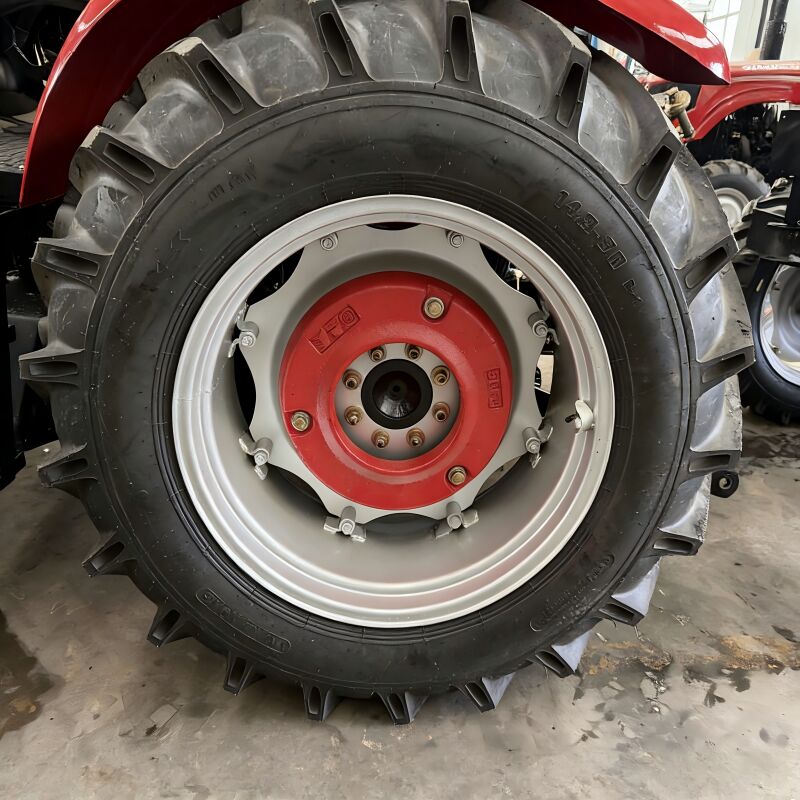

10.Tyres:8.3-20/14.9-28
11.One set of hydraulic output
12.Strong rise and fall system
13.Fuel tank:Side fuel tank
14.Safety rack: included
15.Chasis: TB chasis
16.Counterweight: 8 front and 2 rear
17.PTO: 540/760r/min
18.Net weight:3450kgs
19.Size(L*W*H):3900*1800*2770mm
20.Canopy: included
