Hydraulic Folding Disc Harrow for 45-160HP Tractors

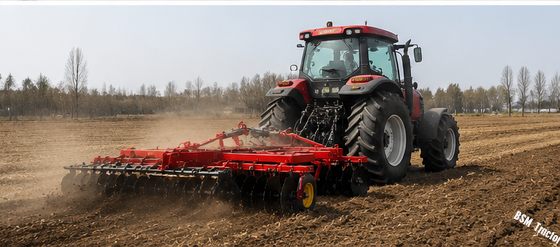

The BSM 1BJ Series Hydraulic Folding Disc Harrow is designed for efficient soil preparation with 45-160HP agricultural tractors. It is suitable for breaking soil clods after ploughing, loosening cultivated soil, mixing crop residue and fertilizer, removing light weeds and preparing seedbeds before planting.

With working widths from 2.0m to 6.0m, this hydraulic folding disc harrow provides higher field efficiency for medium and large farms. The folding structure reduces transport width and makes field transfer, road transport and storage more convenient.

The 1BJ Series uses 560mm concave disc blades, a reinforced steel frame and a hydraulic trailed structure. Different models can be matched with tractors from approximately 45HP to 160HP according to soil hardness, field size, required working width and tractor hydraulic configuration.

• Breaking soil clods after primary ploughing
• Secondary tillage and seedbed preparation
• Loosening and mixing cultivated soil
• Mixing crop residue and fertilizer into the soil
• Removing light weeds and surface stubble
• Preparing corn, wheat, soybean and cotton fields
• Large-area farmland preparation
• Medium and large commercial farm operations

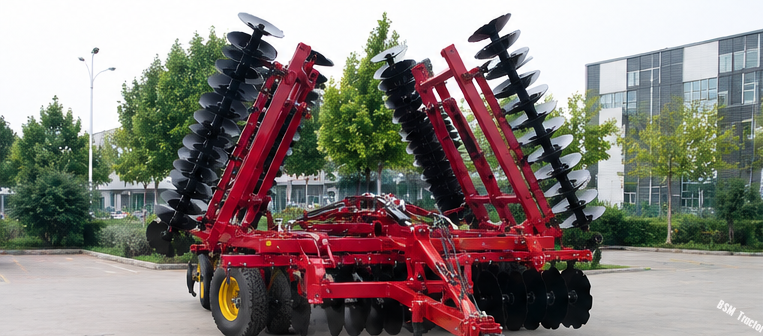

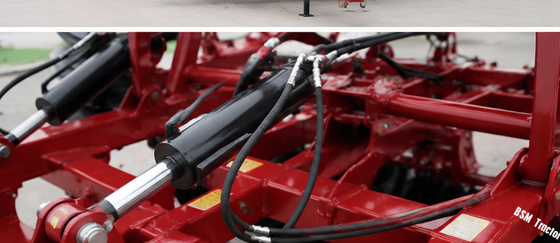

• Hydraulic Folding Structure: The working sections can be folded hydraulically to reduce transport width and improve road transport convenience.
• Wide Working Range: Available working widths include 2.0m, 4.4m, 4.8m, 5.3m and 6.0m.
• Suitable for 45-160HP Tractors: Multiple models are available for medium and high-horsepower tractors.

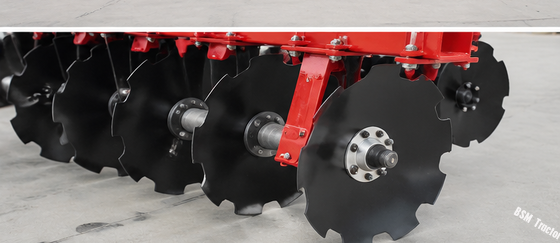

• 560mm Disc Blades: The 22-inch concave discs provide effective soil cutting, clod breaking and residue incorporation.
• Reinforced Steel Frame: The strong frame provides stable performance during medium and large-area field preparation.
• High Field Efficiency: Wide working widths help reduce repeated passes and improve daily working capacity.
• Replaceable Wearing Parts: Disc blades, bearings and selected wearing parts can be supplied separately.
• OEM Support: Color, logo, product label and selected configuration services are available.

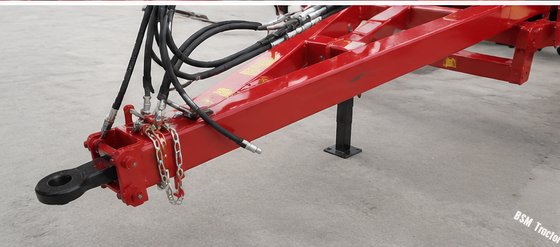

Linkage: Hydraulic trailed connection with a compatible agricultural tractor.

Note: Tractor horsepower is one reference for model selection. Tractor weight, hydraulic configuration, soil hardness, field slope and required working depth must also be confirmed before ordering. Final specifications are subject to the confirmed production configuration.

The correct hydraulic folding disc harrow should be selected according to tractor horsepower, hydraulic system, tractor weight, soil condition, field size and required daily working capacity.

• 45-65HP tractors: 1BJ-2.0 with a 2000mm working width.
• 75-100HP tractors: 1BJ-4.4 with a 4400mm working width.
• 100-120HP tractors: 1BJ-4.8 with a 4800mm working width.
• 140-150HP tractors: 1BJ-5.3 with a 5300mm working width.
• 140-160HP tractors: 1BJ-6.0 with a 6000mm working width.

For hard soil, wet fields, sloping land or deep working requirements, a tractor with stronger traction and sufficient hydraulic capacity should be selected. Four-wheel drive tractors are generally recommended for wider models and demanding field conditions.

BSM supplies agricultural tractors and matching farm implements. Customers can select the tractor and hydraulic folding disc harrow as one complete field preparation package.

This tractor power range can be considered for the compact 1BJ-2.0 model after confirming tractor weight, hydraulic output and field conditions.

View 45-50HP Four Wheel Farm Tractor

A 70HP four-wheel drive tractor provides stronger traction and field stability for suitable disc harrow configurations. Final matching must be confirmed according to actual implement weight and hydraulic requirements.

View 70HP 4WD Farm Tractor

The 100HP 4WD farm tractor is suitable for medium and large farm work and can support wider soil preparation implements after configuration confirmation.

View 100HP 4WD Farm Tractor

A mounted light duty disc harrow is normally selected for small tractors, light soil and narrow fields. A mounted medium duty disc harrow uses larger discs and a stronger frame for medium soil and more demanding secondary tillage.

A hydraulic folding disc harrow is more suitable for medium and large farms that require wider working widths, higher field efficiency and more convenient transport between fields.

Customers who use tractors below approximately 60HP or work on smaller farms can also consider the BSM Mounted Light Duty Disc Harrow.

View Mounted Light Duty Disc Harrow

• Corn and maize fields
• Wheat fields
• Soybean fields
• Cotton-growing areas
• Large vegetable farms
• Dry farmland
• Previously ploughed medium soil
• Crop residue incorporation fields
• Medium and large commercial farms

• Working widths from 2.0m to 6.0m
• Suitable for approximately 45-160HP tractors
• Hydraulic folding structure for easier transport
• 560mm concave disc blades
• Reinforced frame for stable field operation
• Multiple disc quantities and working widths
• Replaceable disc blades, bearings and wearing parts
• OEM color, logo and product label service
• Tractor and farm implement package solutions
• Export packing and container loading support

The hydraulic folding disc harrow can be packed with an iron frame, reinforced export package or partially disassembled structure according to model size, container plan and destination requirements.

For large models, folding sections and selected components may be fixed separately to reduce transportation volume. BSM can also arrange tractors, disc harrows, spare disc blades, bearings and other agricultural implements in the same order.

The BSM 1BJ Series is designed for approximately 45-160HP tractors. The final selection depends on working width, implement weight, hydraulic capacity, soil condition and required working depth.

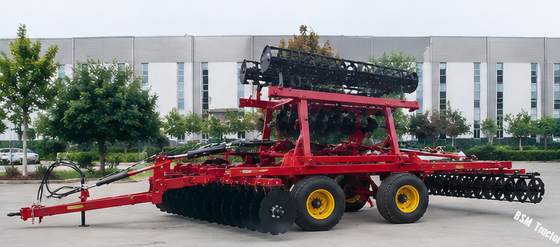

The hydraulic folding structure provides a wide working width in the field while reducing the machine width during transport. It is suitable for medium and large farms that require higher productivity.

The recommended working depth is approximately 160-180mm. Actual depth depends on soil hardness, tractor traction, operating speed and disc setting.

The 1BJ Series uses 560mm or 22-inch disc blades with a standard thickness of approximately 4mm.

No. This series uses a hydraulic trailed structure. The tractor must have suitable pulling capacity and hydraulic connections.

Yes. Please provide tractor horsepower, tractor weight, hydraulic configuration, soil condition, required working width and destination country. BSM will recommend a suitable model.

Yes. BSM can supply disc blades, bearings and selected wearing parts together with the machine.

Yes. BSM supplies tractors and matching farm implements. The tractor, disc harrow and spare parts can be arranged as one export order.

Please provide your tractor horsepower, hydraulic configuration, soil condition, preferred working width, destination country and order quantity. BSM will provide model recommendations, technical specifications, factory quotation and shipping suggestions.
