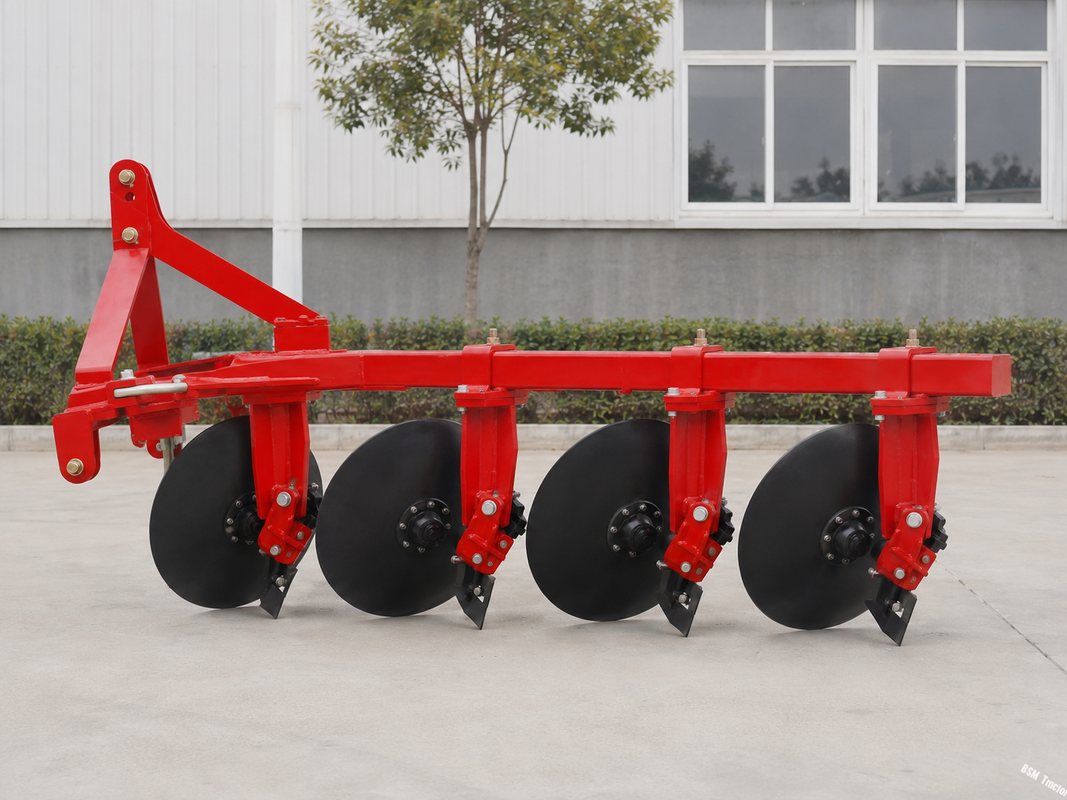

Mounted One Way Disc Plough for 18-160HP Tractors
| Brand Name: | BSM |
| MOQ: | 1 Set |
| Price: | Contact us for the latest quotation |
| Packaging Details: | Iron frame or wooden case packing. Container loading quantity depends on tractor model and implement configuration. |
The BSM 1LYQ Series Mounted One Way Disc Plough is designed for primary tillage, soil cutting and soil turning with agricultural tractors from approximately 18HP to 160HP. The series includes configurations with 2 to 6 concave disc blades, allowing customers to select a suitable model according to tractor power, soil condition and required working width.
Unlike a disc harrow that mainly breaks and mixes the upper soil layer, a disc plough cuts deeper into the ground and turns the soil to one side. It is suitable for dry, hard, sticky, stony or residue-covered farmland where a conventional mouldboard plough may experience high resistance or soil adhesion.
The mounted three-point linkage provides a compact structure, convenient transport and simple connection to common agricultural tractors. BSM can recommend a suitable disc quantity and working width according to the tractor horsepower, tractor weight, hydraulic lifting capacity and local field conditions.
- Primary tillage before planting
- Turning dry and hard topsoil
- Ploughing sticky or heavy soil
- Opening previously uncultivated farmland
- Cutting crop roots and surface residue
- Incorporating weeds and organic material into the soil
- Preparing maize, wheat, soybean, cotton and grain fields
- Land preparation on small, medium and large farms
The concave disc blades rotate while moving through the field. Each disc cuts into the soil, lifts the soil slice and turns it toward one side. The rotating disc structure reduces sliding resistance and helps the implement pass through residue, roots and sticky soil.
Because the discs rotate during operation, soil is less likely to remain attached to the working parts compared with some fixed plough structures. This makes a disc plough useful in fields with difficult soil or abundant crop residue.
- Two to Six Disc Configurations: Different disc quantities are available for small, medium and high-horsepower tractors.
- For Approximately 18-160HP Tractors: The complete series covers a wide range of agricultural tractor power.
- Three-Point Mounted Connection: The compact mounted structure allows convenient connection, lifting and transport.
- Concave Rotating Discs: The disc blades cut, lift and turn the soil during primary tillage.
- Suitable for Difficult Soil: The machine can work in dry, hard, sticky and residue-covered fields.
- Strong Frame Structure: The reinforced frame supports repeated agricultural work under demanding field conditions.
- Adjustable Working Angle: Selected configurations allow adjustment according to soil resistance and required ploughing performance.
- Replaceable Wearing Parts: Disc blades, bearings, hubs, scrapers and other wearing parts can be supplied.
- Easy Maintenance: The simple mechanical structure supports routine inspection and replacement of wearing parts.
- OEM Service: Color, logo, product label and selected configurations can be customized.
| Configuration | Disc Quantity | Estimated Working Width | Estimated Working Depth | Estimated Disc Diameter | Estimated Weight | Recommended Tractor Power |
|---|---|---|---|---|---|---|
| 2-Disc Type | 2 | Approx. 400-600 mm | Approx. 180-250 mm | Approx. 560-660 mm | Approx. 180-300 kg | 18-35 HP |
| 3-Disc Type | 3 | Approx. 600-900 mm | Approx. 180-280 mm | Approx. 560-660 mm | Approx. 280-450 kg | 30-55 HP |
| 4-Disc Type | 4 | Approx. 800-1200 mm | Approx. 200-300 mm | Approx. 610-710 mm | Approx. 400-650 kg | 50-90 HP |
| 5-Disc Type | 5 | Approx. 1000-1500 mm | Approx. 200-300 mm | Approx. 660-710 mm | Approx. 550-850 kg | 80-120 HP |
| 6-Disc Type | 6 | Approx. 1200-1800 mm | Approx. 200-300 mm | Approx. 660-710 mm | Approx. 700-1100 kg | 100-160 HP |
Technical Note: The 1LYQ Series, 2-6 disc configurations and overall tractor power range are based on the BSM farm implement product planning information. Working width, working depth, disc diameter and machine weight shown above are estimated according to common agricultural configurations.
Final disc quantity, dimensions, machine weight and matched tractor power are subject to BSM technical confirmation before quotation, production and contract signing.
Tractor horsepower is an important reference, but the disc plough should not be selected only according to engine power. Tractor weight, hydraulic lifting capacity, three-point hitch category and soil resistance must also be considered.
Please provide the following information:
- Tractor brand and model
- Tractor horsepower
- 2WD or 4WD configuration
- Tractor operating weight
- Three-point hitch category
- Hydraulic lifting capacity
- Soil type and soil moisture
- Amount of crop residue
- Required working depth
- Required working width
- Farm area and daily workload
Four-wheel drive tractors are generally recommended for hard soil, deep ploughing, sloping farmland and larger disc configurations.
- 18-35HP tractors: consider a compact 2-disc configuration for small farms, orchards and light or medium soil.
- 30-55HP tractors: consider a 3-disc configuration after confirming the hydraulic lifting capacity and soil resistance.
- 50-90HP tractors: consider a 4-disc configuration for medium farm primary tillage.
- 80-120HP tractors: consider a 5-disc configuration for wider coverage and harder soil.
- 100-160HP tractors: consider a reinforced 6-disc configuration for large farms and demanding field preparation.
| Comparison | One Way Disc Plough | Disc Harrow |
|---|---|---|
| Main Function | Primary tillage and soil turning | Secondary tillage and soil breaking |
| Working Depth | Generally deeper | Generally shallower |
| Soil Movement | Turns soil toward one side | Cuts and mixes the upper soil layer |
| Best Application | Hard soil, new farmland and primary ploughing | Seedbed preparation and residue mixing |
| Field Finish | Produces turned soil ridges | Produces a more broken and mixed surface |
A disc plough uses rotating concave discs, while a mouldboard plough uses fixed plough bodies. The rotating discs are suitable for sticky soil, roots, stones and heavy residue because they can roll over or cut through some obstacles.
A mouldboard plough can provide strong soil inversion and a clean furrow in suitable soil. The best choice depends on soil texture, moisture, residue level, tractor power and the required ploughing result.
A BSM 70HP 4WD tractor can be matched with selected 3-disc or 4-disc configurations after confirming the implement weight, working depth and tractor hydraulic lifting capacity.
View BSM Farm Tractor and Implement Options
A BSM 100HP 4WD tractor can be considered for selected 4-disc or 5-disc configurations on medium and large farms. Final matching depends on soil resistance and hydraulic capacity.
View BSM 100HP 4WD Farm Tractor
A 120HP 4WD tractor can work with selected 5-disc or reinforced 6-disc configurations after technical confirmation.
View BSM 120HP 4WD Agricultural Tractor
- Mounted Light Duty Disc Harrow for Small and Medium Tractors
- Mounted Medium Duty Disc Harrow for 35-75HP Tractors
- Hydraulic Folding Disc Harrow for 45-160HP Tractors
- Dry and hard farmland
- Sticky clay soil
- Previously uncultivated land
- Fields with crop roots and residue
- Maize and corn fields
- Wheat and soybean farms
- Cotton-growing farmland
- Orchard and plantation soil preparation
- Small and medium mixed farms
- Large commercial farming projects
- Two to six disc configurations available
- Wide tractor power matching range
- Model recommendation based on tractor and soil
- Reinforced agricultural steel frame
- Replaceable disc blades and wearing parts
- Tractor and implement package supply
- OEM color, logo and product label service
- Export packing and container-loading support
- Farm machinery solutions for Africa and South America
- Support for farmers, dealers and agricultural projects
The mounted one way disc plough can be secured on a reinforced steel frame or pallet according to the disc quantity, machine size and container-loading plan. Selected components may be removed or separately secured to reduce transportation volume.
BSM can arrange the tractor, disc plough, spare disc blades, bearings, scrapers and other agricultural implements in the same export order.
The complete 1LYQ Series covers approximately 18-160HP tractors. The correct configuration depends on disc quantity, machine weight, working depth, soil resistance and tractor lifting capacity.
Small tractors generally use fewer discs, while heavier and more powerful tractors can use wider configurations. Please provide the tractor model, horsepower, weight and soil condition for accurate matching.
Yes. The rotating concave discs are suitable for dry, hard, sticky and residue-covered soil. Actual performance depends on soil moisture, tractor traction and working depth.
Yes. The rotating discs can cut through crop roots, weeds and surface residue while turning the soil.
Yes. The product uses a tractor three-point linkage. The hitch category and hydraulic lifting capacity must be confirmed before ordering.
A disc plough is mainly used for deeper primary tillage and soil turning. A disc harrow is mainly used for shallower soil breaking, mixing and seedbed preparation.
Yes. Please provide tractor horsepower, tractor weight, hitch category, hydraulic lifting capacity, soil condition and required working width.
Yes. BSM can supply disc blades, bearings, hubs, scrapers, bolts and selected wearing parts.
Yes. BSM can provide complete tractor and implement package recommendations, export packing and combined container-loading support.
Please provide your tractor brand, model, horsepower, drive type, three-point hitch category, hydraulic lifting capacity, soil condition, required working width, destination country and order quantity.
BSM will provide a suitable disc configuration, confirmed technical specifications, factory quotation and shipping proposal.
