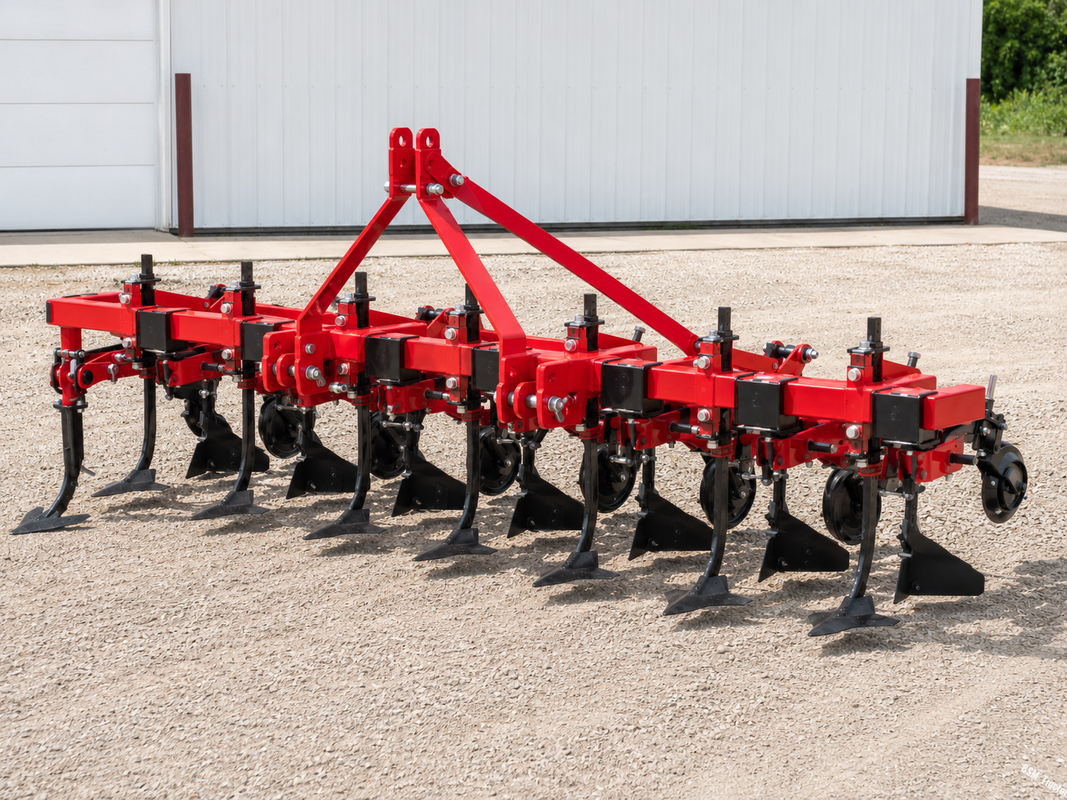

3Z Row Crop Cultivator and Ridger for 20-55HP Tractors
The BSM 3Z row crop cultivator and ridger is designed for agricultural tractors from 20HP to 55HP. It is suitable for inter-row cultivation, soil loosening, furrowing, weeding and ridging in fields planted with corn, soybean, cotton, sweet potato and other row crops.
The 3Z series adopts a three-point mounted structure for convenient connection with compatible agricultural tractors. Adjustable row spacing allows the machine to match different crop planting patterns and field requirements.
Three models are available: 3Z-2, 3Z-3 and 3Z-4. The working width ranges from 1500mm to 3700mm, with 3 to 5 cultivation rows and 2 to 4 ridging rows.
- Inter-row cultivation for row crops
- Loosening compacted surface soil
- Removing weeds between crop rows
- Opening furrows before planting or fertilizing
- Forming ridges around crop rows
- Improving soil aeration and water infiltration
- Field maintenance for corn, soybean, cotton and sweet potato
During operation, the working tips enter the soil between crop rows to loosen the surface layer, remove weeds and improve soil aeration. Depending on the selected setup, the rear working sections can also form ridges or open furrows.
The row spacing can be adjusted from approximately 450mm to 600mm. This makes the cultivator suitable for different crop spacing, tractor wheel tracks and regional planting methods.
- Multiple field operations: The machine can perform cultivation, loosening, weeding, furrowing and ridging.
- Adjustable row spacing: Working units can be adjusted to match row spacing from approximately 450mm to 600mm.
- Three model options: The 3Z-2, 3Z-3 and 3Z-4 models cover different farm sizes and tractor power ranges.
- Three-point mounted linkage: Provides convenient connection with compatible agricultural tractors.
- Lightweight structure: Machine weight ranges from 95kg to 140kg, reducing lifting requirements.
- Suitable for row crops: Designed for corn, soybean, cotton, sweet potato and similar crops.
- Simple adjustment: Row spacing and working layout can be adjusted according to field requirements.
- OEM service: BSM can provide customized color, logo and model configuration.
| Model | Working Width | Plough Tips | Cultivation Rows | Ridging Rows | Row Spacing | Matched Power | Weight |
|---|---|---|---|---|---|---|---|
| 3Z-2 | 1500mm | 3 | 3 Rows | 2 Rows | 450-600mm | 20-30HP | 95kg |
| 3Z-3 | 2900mm | 4 | 4 Rows | 3 Rows | 450-600mm | 35-45HP | 115kg |
| 3Z-4 | 3700mm | 5 | 5 Rows | 4 Rows | 450-600mm | 45-55HP | 140kg |
Linkage: All models use a three-point mounted connection.
| Model | Recommended Tractor | Recommended Application |
|---|---|---|
| 3Z-2 | 20-30HP Tractor | Small farms and three-row cultivation |
| 3Z-3 | 35-45HP Tractor | Medium farms and four-row cultivation |
| 3Z-4 | 45-55HP Tractor | Wider fields and five-row cultivation |
The cultivator can loosen soil, remove weeds and form ridges between corn rows. The working units should be adjusted according to the corn planting distance.
Inter-row cultivation helps control weeds, loosen compacted soil and improve air circulation around soybean roots.
The adjustable row spacing makes the machine suitable for cotton fields with different planting layouts.
The ridging function can be used to prepare or maintain raised beds for sweet potato cultivation.
Tractor selection should consider engine power, rear lifting capacity, tractor wheel track, crop row spacing and field conditions. The tractor tires must remain outside the crop rows during operation.
Before field work, the spacing between the working units should be adjusted according to the actual planting rows. Adequate clearance should be maintained to avoid damaging crop roots and plants.
For uneven or hard soil, the operating speed should be reduced to maintain stable working depth and avoid excessive impact on the frame.
- 1500mm working width
- Three cultivation rows
- Two ridging rows
- Suitable for 20-30HP tractors
- Recommended for small farms
- 2900mm working width
- Four cultivation rows
- Three ridging rows
- Suitable for 35-45HP tractors
- Recommended for medium farms
- 3700mm working width
- Five cultivation rows
- Four ridging rows
- Suitable for 45-55HP tractors
- Recommended for wider row crop fields
- Combines cultivation, loosening, weeding and ridging
- Adjustable working units for different crop rows
- Three models for different tractor power ranges
- Simple three-point mounted structure
- Low machine weight and convenient operation
- Suitable for common row crops
- OEM color and logo service available
- Tractors and agricultural implements from one supplier
- Model selection according to tractor and crop conditions
- Support for customized color and logo
- Spare parts and wearing parts supply
- Export packaging and international transportation
- Experience serving customers in Africa and South America
The 3Z series is designed for tractors from approximately 20HP to 55HP. The 3Z-2 matches 20-30HP tractors, the 3Z-3 matches 35-45HP tractors, and the 3Z-4 matches 45-55HP tractors.
Yes. The working units can be adjusted to match row spacing from approximately 450mm to 600mm.
Yes. The 3Z series supports both inter-row cultivation and ridging. The 3Z-2 forms two ridging rows, the 3Z-3 forms three rows, and the 3Z-4 forms four rows.
The machine is suitable for corn, soybean, cotton, sweet potato and other crops planted in regular rows.
Yes. BSM can provide customized color, logo and working-unit configuration according to tractor specifications and crop row spacing.
Yes. BSM can recommend a suitable tractor and cultivator combination according to farm size, crop type, planting distance and required working width.
For primary tillage and deep soil inversion before inter-row cultivation, customers can also choose the BSM 1LF hydraulic reversible mouldboard plough.
Please provide the tractor model, tractor horsepower, crop type, planting row spacing, required cultivation rows, farm size, destination country and purchase quantity.
BSM will recommend a suitable 3Z cultivator model and provide a factory quotation.
